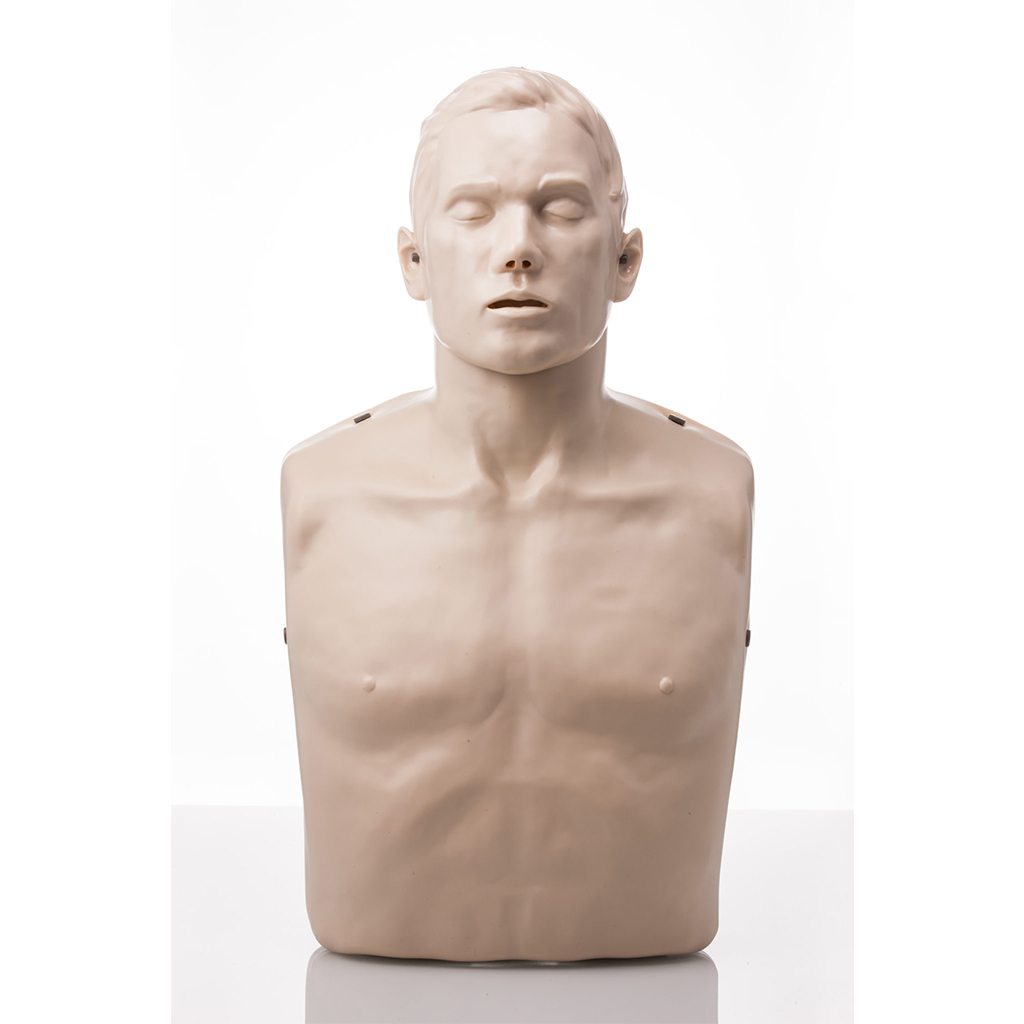

The first manikin that helps you visualise the effects of CPR

  • Builds confidence
  • Promotes understanding
  • Aids knowledge retention

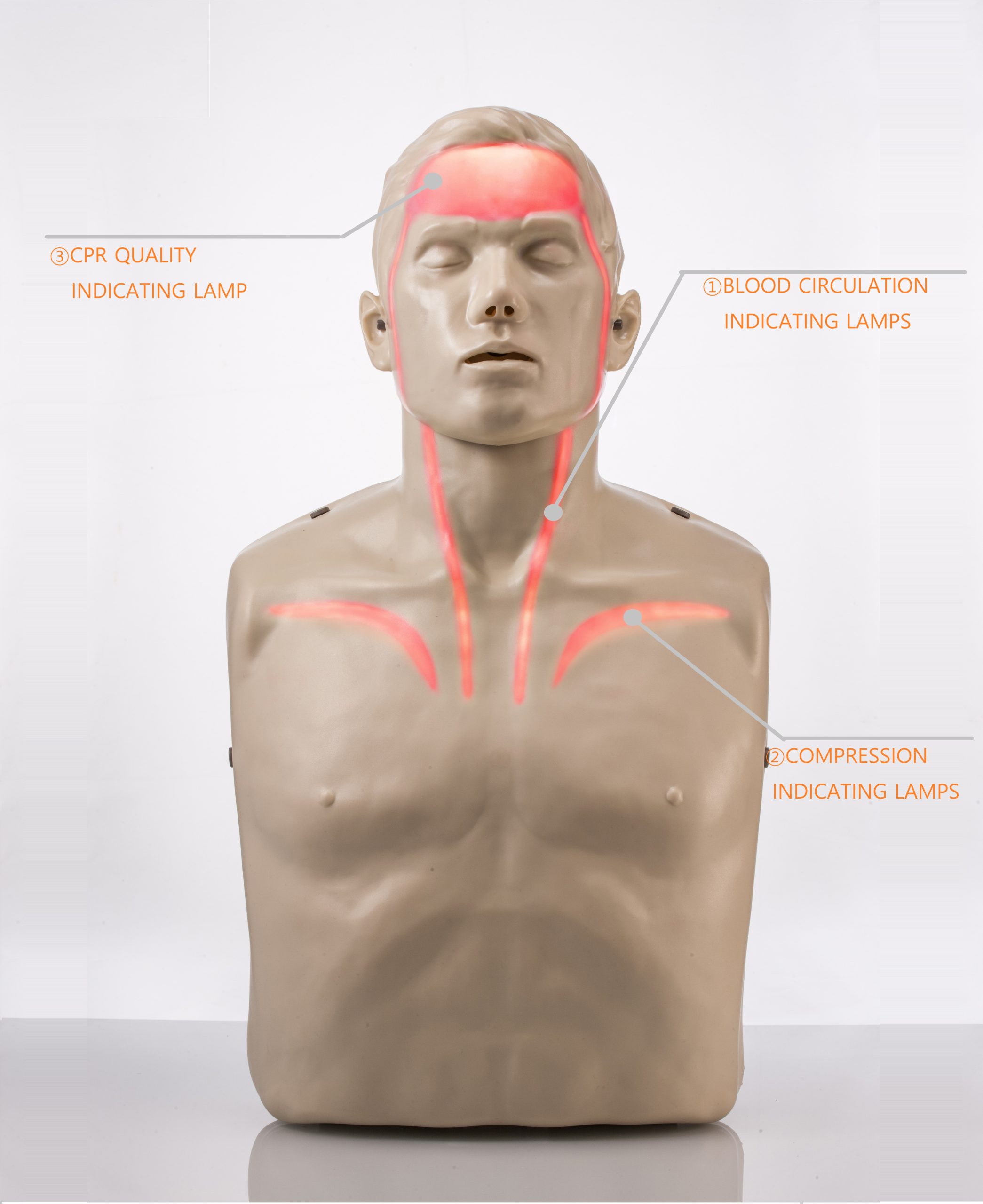

Three interrelated sets of LED lights give real time feedback of CPR performance & function.

Chest compression indicating lights

These illuminate to represent the volume of blood being circulated by the chest compressions. This volume depends on the depth of compressions. These will only fully light when the depth of compressions is over 5cm.

Blood circulation indicating lights

These illuminate to represent the flow of blood from the heart to the brain. The speed of the blood flow shown varies according to the depth and speed of the compressions. These will only fully light once the rate of compressions is over 100 per minute.

CPR quality indicating light

This illuminates to represent that blood is reaching the brain. This will only fully light when the depth and speed of compressions are correct.

Features

Oral and nasal passages which allow realistic nose pinch
Head tilt and chin lift for opening airway
Audible feedback reinforces correct compression depth (Clicker ON/OFF)
6 set of alkaline batteries can power 160,000 compressions. AC supply optional.
Highly realistic chest movement with correct ventilations
Anatomically correct. Harmless, latex-free skin. East AED training pad removal. RoHS & REACH compliant.
Air vent reduces the risk of cros contamination. Air from Brayden’s lungs exit through the back of his head. This means students never come into contact with exhaled air.


Technical specifications


Packed weight:
5.3KG
Dimensions packed: 37 x 26 x 62cm
Power: AC Adapter (Input AC 100 – 260V, Output DC 9V 1A) / Battery C type 1.5V (6 batteries)

Also available without lights – please make your selection above and the price will be automatically adjusted.

Weight 6 kg
